I did something with the arrows. What?

Posted: Wed Aug 15, 2018 9:09 pm
by Mikerosen
When doing small dimensions, the arrows were outside the witness line. I went poking around in Preferences > Dimensions, and now, the arrows are inside. Also, my arrow choices don't include the outside arrows, like in George's great manual.

What did I do, and how can I fix it?

Merci!

Re: I did something with the arrows. What?

Posted: Thu Aug 16, 2018 4:07 pm
by Eric Pousse
Bonjour Mike,

RealCADD does not have the possibility to do this automatically.
But you can do this :

Is that what you want?

Cordialement.

Re: I did something with the arrows. What?

Posted: Thu Aug 16, 2018 7:19 pm
by Mikerosen
But I did that in RealCADD! The one in the upper left was done first. Then I fooled around in the preferences, and when I entered the one in the lower right, that's what I got!

Re: I did something with the arrows. What?

Posted: Fri Aug 17, 2018 3:32 pm
by debenriver
I think it can depend on whether you select for the dimension to be above/below the line or centred.

If you select above or below, then I can only make it do you right hand result.

But if you select centre then, if the text is large or the dimension small, RealCADD seems to put the arrows outside:

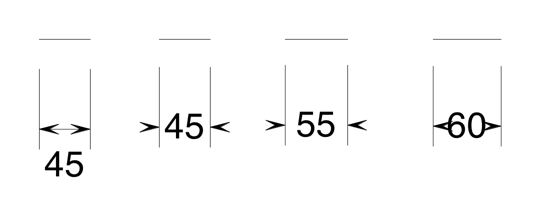

Screen Shot 2018-08-17 at 11.23.34.png
Screen Shot 2018-08-17 at 11.23.34.png (17.39 KiB) Viewed 7387 times
The left hand image is with "below" selected - the rest are with "centre" selected. Once it can squeeze the dimension in between the witness line arrows it seems to do so, but if it can't it puts the arrows outside. In the image, this has happened when the line was about 60 long.

I can't make it do your left hand one!

Cheers -- George

PS in 4.90 there's a whole slew of new arrows - great fun :mrgreen:

Re: I did something with the arrows. What?

Posted: Fri Aug 17, 2018 10:01 pm
by Mikerosen
Thanks, George. I’ll give it a look.

I did the left one the regular way, and moved the number manually!

Re: I did something with the arrows. What?

Posted: Fri Aug 17, 2018 11:37 pm
by debenriver
I did the left one the regular way, and moved the number manually!


Ah! - well you had me fooled :mrgreen:

George
